614854-6-2 61485462 DENNIS Elite Spring – Rear Tag Axle 2 Leaf 614854/6/2
OE Refs: 614854-6-2, 614854/6/2, 614854-62
Description

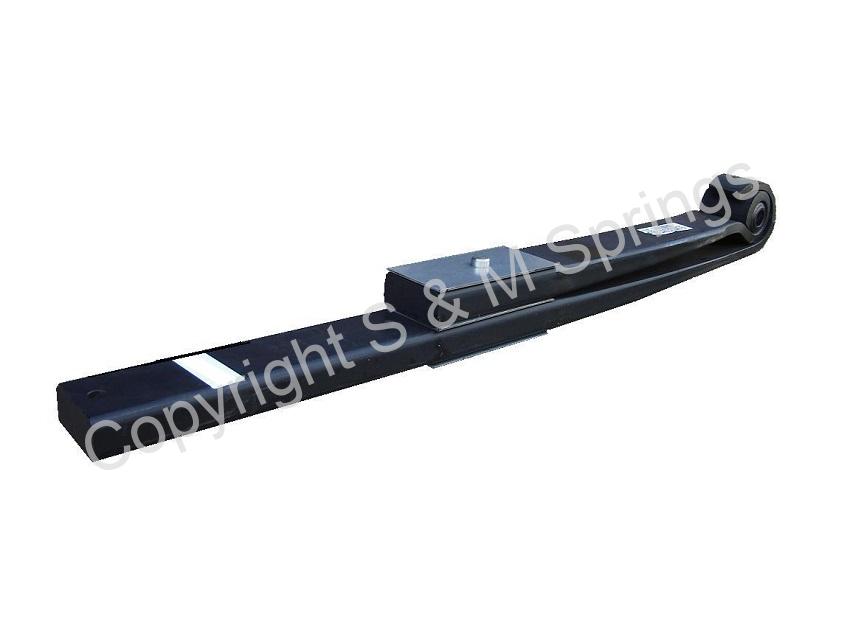

Parabolic 2 Leaf Spring for DENNIS Elite applications, with an OE Ref: 614854-6-2 or 614854/6/2
This is a 2 hole version and comes fully bushed. Spring Eye Bush is in stock, with an OE Ref: 613818-24
The Spring Eye Bolt, Nut and Washer with OE Refs: 614672-16, 613818-10 and DEP103200 respectively, are all stocked
Fits on the Rear, as a Tag Axle. Item is in stock. Please enquire for the 4 hole version
Dimensions:
Centre of eye to end of spring = 1200mm
Width = 100mm. Bush I/D = 30mm
The 2 holes have centres of 355mm
Each leaf = 45mm thick, with pack depth of 99mm, measured in the middle
U/Bolts available, normally one at 350mm under head, and one at 330mm under head. Please ask
If you need a timed delivery service for this ref: 614854-6-2 61485462 DENNIS Elite Spring, we can help
