Agricultural Drawbar Trailer U-Bolts

Agricultural Drawbar Trailer U-Bolts

also in stock:

  • Drawbar Trailer Spring 11 Leaf
  • Drawbar Trailer Spring 13 Leaf
  • Drawbar Trailer Spring 13 Leaf H/Duty
  • Spring Eye Pin & Nut (for Drawbar Springs)
  • 3 Leaf Agricultural Spring Slipper Ended One Hook
  • 4 Leaf Agricultural Spring Slipper Ended One Hook

Description

Agricultural U-Bolts for Drawbar Trailer Springs, to fit 11, 13 & 13 Leaf H/D Springs.

U-Bolts in stock & available for same day delivery or next day courier service.

Our U-Bolt refs:

  • 51103 (for 11 leaf Spring)
  • 51104 (for 13 Leaf Spring)
  • 51104HD (for 13 Leaf H/Duty Spring)

Established in 1995, S & M Springs has over 30 years experience in the supply & manufacture of Parabolic and Multi-Leaf Springs for the Commercial, Agricultural, LCV & 4 x 4 markets.

U-Bolt Dimensions (for 11 Leaf  Spring):

  • Under Head Length = 220mm
  • Thread Length = 90mm
  • Material = M24

U-Bolt Dimensions (for 13 Leaf  Spring):

  • Under Head Length = 260mm
  • Thread Length = 90mm
  • Material = M24

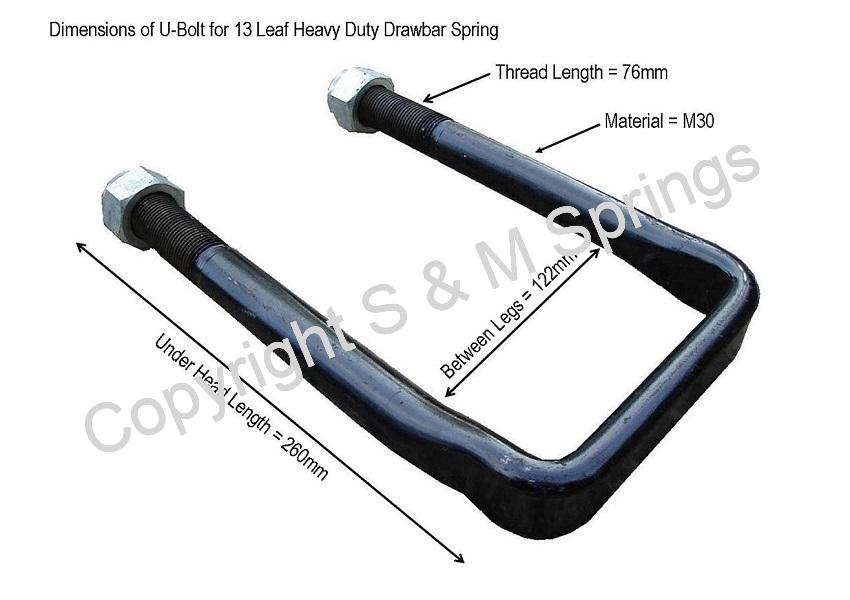

U-Bolt Dimensions (for 13 Leaf  H/Duty Spring):

  • Under Head Length = 260mm
  • Thread Length = 76mm
  • Material = M30

Dimension for all U-Bolts:

  • Between Legs = 122mm

Dimensions for 11 Leaf Spring:

  • Width = 120mm
  • Centre of Eye to Centre of C/Bolt = 870mm
  • Centre of Eye to end of Spring = 970mm
  • Pack Depth = 154mm
  • Eye I/D = 45mm
  • Diameter of C/Bolt Head = M24 x 10mm deep

Dimension for 13 Leaf:

  • Pack Depth = 190mm

Dimension for 13 Leaf H/D:

  • Pack Depth = 205mm

Also in stock, 3 & 4 Leaf Parabolic Slipper Ended Agricultural Springs, with one Hook.

  • Dimensions: Length (in a Straight Line) = 1070mm
  • Depth = 73mm (3 Leaf), 97mm (4 Leaf)
  • Width = 75mm
  • Centre Bolt Head = 25mm diameter x 16mm in depth

If you need a timed delivery service for this ref: Agricultural Drawbar Trailer U-Bolts , we can help.

Just give us a call. We are here to help!  For any more information on this, and any other related products..
