Saddle for Z Spring – Agricultural Bale Chaser Air Suspension LH & RH
Description

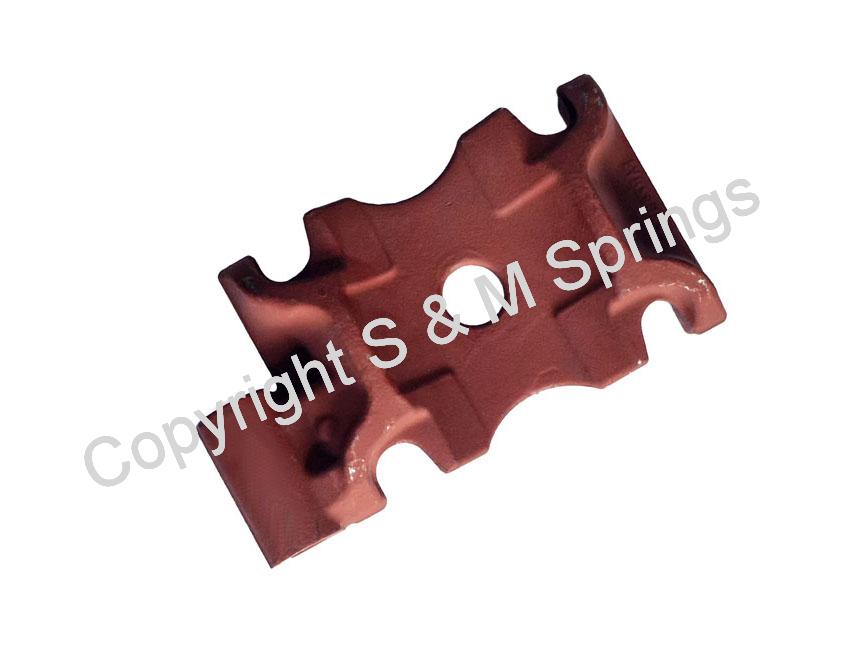

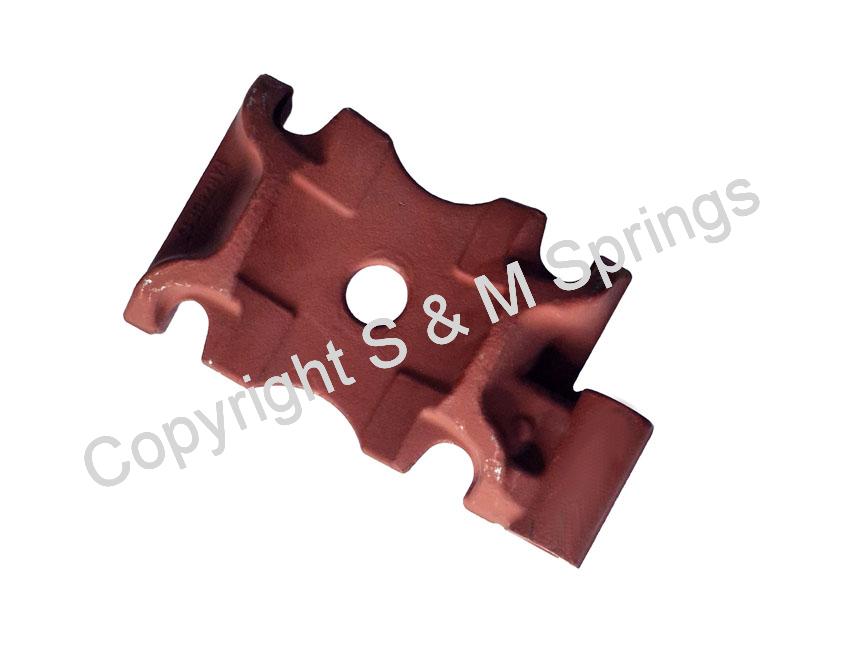

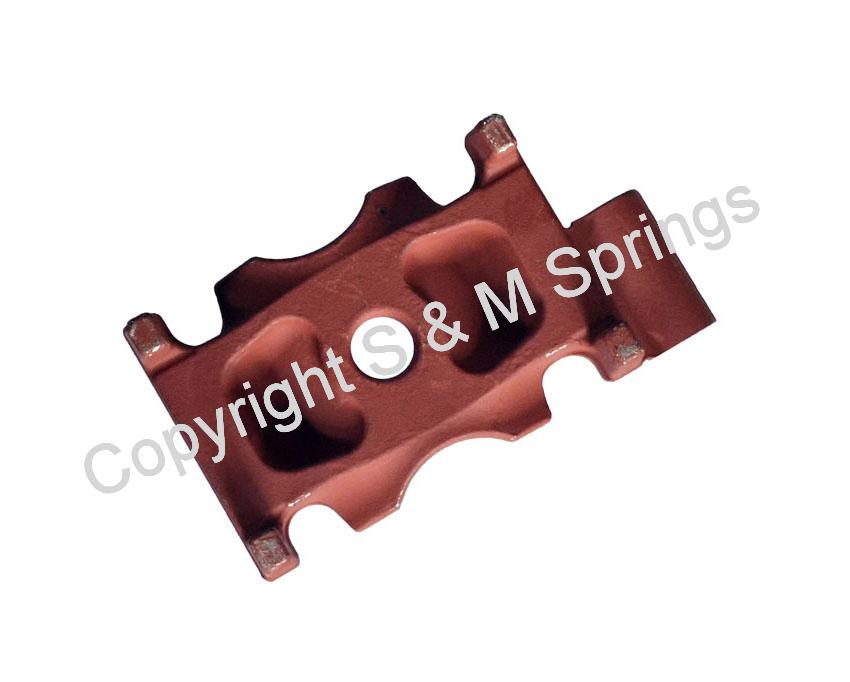

This Spring Saddle fits our Z Spring for Agricultural Bale Chasers
Left Hand & Right Hand sides are both available
The Z Spring, Airbag, Spring Saddles and U Bolts are also available
Dimensions of Z Spring:
Centre of Spring Eye to End of Spring: 910mm
Pack Depth (Thickest part of spring): 48mm
Width: 100mm
4 Holes on End of Spring
Also available are the U Bolts, Spring Saddle, Spring Eye Bolt and Spring Eye Bush for the Z Spring.
U Bolt Dimensions:
Material: M22
Width (Inside): 128mm approx.
Length (Inside): 175mm approx.
Thread Length: 70mm approx.
If you need a timed delivery service for this ref:Spring Eye Bolt, Nut & Bush – Agricultural Baler Z Spring, we can help.
A Selection of other Agricultural Axle & Suspension components available:
Agricultural Drawbar Trailer Springs, available in 3 different options:
- 11 Leaf, 13 Leaf and 13 Leaf Heavy Duty option (all 120mm wide)
- Multi-Leaf in style, these Springs are in stock, along with U-Bolts and Spring Eye Pins
Dimensions for 11 Leaf Spring:
- Width = 120mm
- Centre of Eye to Centre of C/Bolt = 870mm
- Centre of Eye to end of Spring = 970mm
- Pack Depth = 154mm
- Eye I/D = 45mm
- Diameter of C/Bolt Head = M24 x 10mm deep
Dimension for 13 Leaf Spring:
- Width = 120mm
- Centre of Eye to Centre of C/Bolt = 870mm
- Centre of Eye to end of Spring = 970mm
- Pack Depth = 190mm
- Eye I/D = 45mm
- Diameter of C/Bolt Head = M24 x 10mm deep
Dimension for 13 Leaf H/D Spring:
- Width = 120mm
- Centre of Eye to Centre of C/Bolt = 870mm
- Centre of Eye to end of Spring = 970mm
- Pack Depth = 205mm
- Eye I/D = 45mm
- Diameter of C/Bolt Head = M24 x 10mm deep
Also in stock, are 3 & 4 Leaf Parabolic Slipper Ended Agricultural Springs, with one Hook only.
These are suitable for many agricultural trailer applications.
- Dimensions: Length (in a Straight Line) = 1070mm, or around the Camber = 560mm x 560mm
- Depth = 73mm (3 Leaf), 97mm (4 Leaf)
- Width = 75mm
- Centre Bolt Head = 25mm in diameter x 16mm in depth
Other configurations of leaf spring are available – 5, 6, 7 & 8 Leaf with various widths
We also have available the following items for Various types of axle:
- Front & Rear Spring Hanger Brackets
- Spring Saddles/Seats
- Equaliser Brackets/Beams
- Equaliser Bush Kits
- Torque Rod Bush Kits
- Air/Hydraulic Brake Chambers/Actuators including Type 20/25 & Type 24/25
- Brake Shoes
- Brake Shoe Fitting Kits
- Brake Drums
Please search our AGRICULTURAL and TRAILER sections for more great products
Please do not hesitate to contact us if you do not see what you require – many more products may be available than are listed here
Contact us on:
Tel: 01775 712125
Email: stuart@sandmsprings.co.uk
