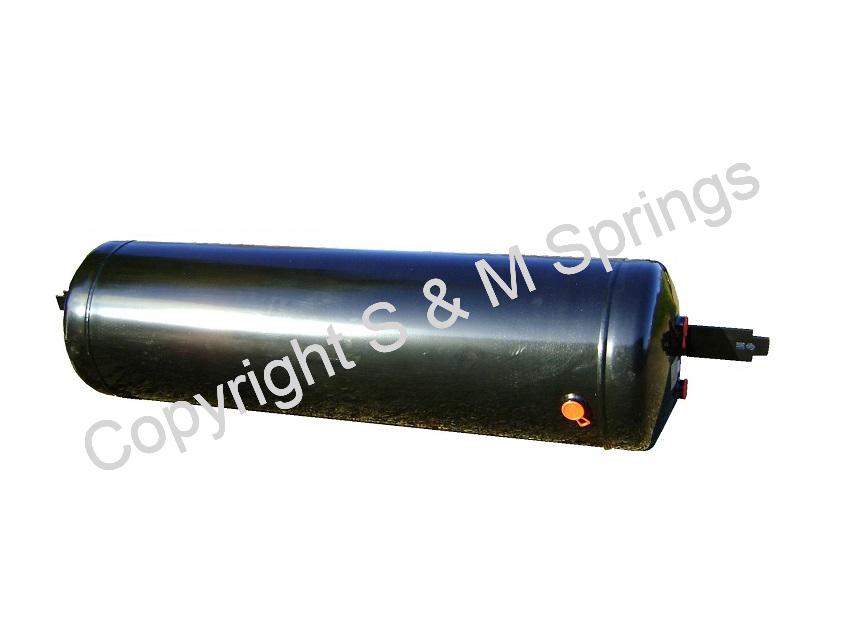

1193014 SCHMITZ Air Reservoir/Tank
OE Ref: 1193014
Description
Air Reservoir/Tank, for SCHMITZ Trailers, with OE Ref: 1193014.
Made of steel and with a capacity of 80 litres

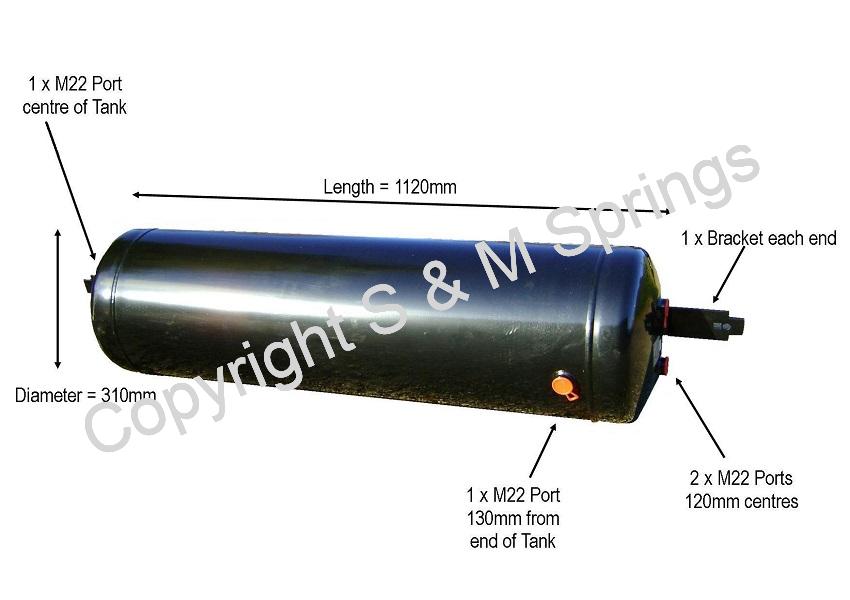

Dimensions:
Diameter: 310mm
Length: 1156mm
Bottom Port Size:M22 x 1.5
Bottom Ports:1
Capacity (Litre):80
Centre Port Size:M22 x 1.5
Centre Ports:1
Mounting Centres: 1347mm
End Mounting
Top Port Size:M22 x 1.5
Top Ports:2
If you need a timed delivery service for this ref: 1193014 SCHMITZ Air Reservoir/Tank, we can help.
A SELECTION of other SCHMITZ parts that are in stock or available (Genuine & Aftermarket):
Suspension:
- Shock Absorber – OE refs: 1093977 & 1008054 (other OE Refs may be available)
- Leaf Spring – OE Ref: 016499
- Leaf Spring – OE Ref: 1284825
- U Bolts – OE Ref: 1031366
- Airbag – OE Refs: 1274268, 1244666 & 016512
- Airbag – OE Ref: US06285
Braking:
- Brake Pads – OE Ref: 1101449
- Brake Pads – OE Ref: 1519421
- Brake Discs – OE Refs: 1522519, 1176816 & 017870
- Brake Calipers – OE Refs: 1156800 (LH) & 1156802 (RH)
Hubs:
- Hub Assembly, complete with 12 Studs and a Tin Cap – OE ref: 1003457
- Hub Cap – OE Ref: 017958
- Wheel Flange Assembly – OE Ref: 1004054
- ABS Sensor Bracket – OE Ref: 1286539
Lighting:
- Rear Lamp Assemblies, LH & RH – OE Refs: 1098645 & 1098646
- LH Stalk Marker – OE Ref: 1157239
- RH Stalk Marker – OE Ref: 1157240
Buffers, Door Retainers & End Caps:
- Metal Door Retainer – OE Ref: 491243
- Plastic Door Retainer – OE Ref: 1163328
- Door Handle – OE Refs: 1221492 & 1221493
- Bumper End Caps (120x100mm) – OE Ref: 1439226
- Bumper End Caps (100x100mm) – OE Ref: 751649
- 3 Hole Vertical Buffer 305mm – OE Ref: 751085
- 4 Hole Vertical Buffer 324mm – OE Ref: 1223593
- Rear Vertical Buffer – OE Ref: 751645
- Rear Vertical Buffer – OE Ref: 751646
Wings & Ladders:
- Vertical Wing Section – OE Refs: 1071858 & 1009977
- 2 Step Ladder – OE Ref: 1081378
- Ladder Frame – OE Ref: 904527
Landing Legs:
- Landing Legs – OE Refs: 1107270 & 1107269
- Landing Legs – OE Refs: 1133397 & 1133410
- Landing Leg Winding Handles – Short & Long
- Landing Leg Cross Shafts – Single Piece
- Landing Leg Cross Shafts – 2 Piece
Other Components:
- Distribution Block (Metal) – OE Refs: 1319444 & 054997
- Distribution Block (Plastic) – OE Ref: 1357399
- Fuel Cap – OE Ref: 360265
- Fuel Cap c/w Chain – OE Ref: 1086670
- Fuel Cap, lockable with keys – OE Ref: 1086671
Please search our SCHMITZ or TRAILER section for more great products.
Please do not hesitate to contact us if you do not see what you require – many more products may be available than are listed here
