Agricultural Drawbar Spring 13 Leaf 120mm wide – GULL
Description
Agricultural Drawbar Trailer Spring, available in 3 options: 13Leaf Heavy Duty, 13 Leaf & 11 Leaf (all are 120mm wide).
These popular leaf springs are always in stock & available for same day delivery or next day courier service.
Our refs for Leaf Springs:
- GULL/NEW11P (11 Leaf)
- GULL/NEW13P (13 Leaf) 18 Ton
- GULL/NEW13HD (13 Leaf H/Duty) 21 Ton
Multi-Leaf in style, these Springs are always available with the relevant U-Bolts, Nuts & Spring Eye Pin.

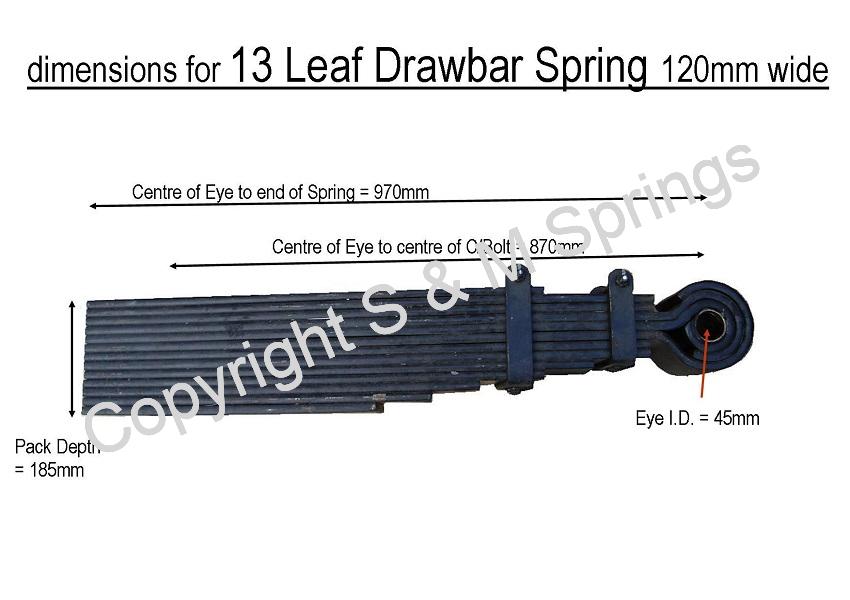

Dimension for 13 Leaf (18 Ton):
- Width = 120mm
- Centre of Eye to Centre of C/Bolt = 870mm
- Centre of Eye to end of Spring = 970mm
- Pack Depth = 185mm
- Eye I/D = 45mm
- Diameter of C/Bolt Head = M24 x 10mm deep
Dimension for 11 Leaf:
- Width = 120mm
- Centre of Eye to Centre of C/Bolt = 870mm
- Centre of Eye to end of Spring = 970mm
- Pack Depth = 154mm
- Eye I/D = 45mm
- Diameter of C/Bolt Head = M24 x 10mm deep
Dimensions for 13 Leaf Spring H/D (21 Ton):
- Width = 120mm
- Centre of Eye to Centre of C/Bolt = 870mm
- Centre of Eye to end of Spring = 970mm
- Pack Depth = 205mm
- Eye I/D = 45mm
- Diameter of C/Bolt Head = M24 x 10mm deep
A Selection of other Agricultural Axle & Suspension components available:
3 & 4 Leaf Parabolic Slipper Ended Agricultural Springs, with one Hook only.
These are suitable for many agricultural trailer applications.
- Dimensions: Length (in a Straight Line) = 1070mm, or around the Camber = 560mm x 560mm
- Depth = 73mm (3 Leaf), 97mm (4 Leaf)
- Width = 75mm
- Centre Bolt Head = 25mm in diameter x 16mm in depth
Other configurations of leaf spring are available – 5, 6, 7 & 8 Leaf
We also have available the following items for Various types of axle:
- Front & Rear Spring Hanger Brackets
- Spring Saddles/Seats
- Equaliser Brackets
- Equaliser Bush Kits
- Torque Rod Bush Kits
- Air/Hydraulic Brake Chambers/Actuators
- Brake Shoes & Fitting Kits
- Brake Drums
Please search our AGRICULTURAL and TRAILER sections for more great products
