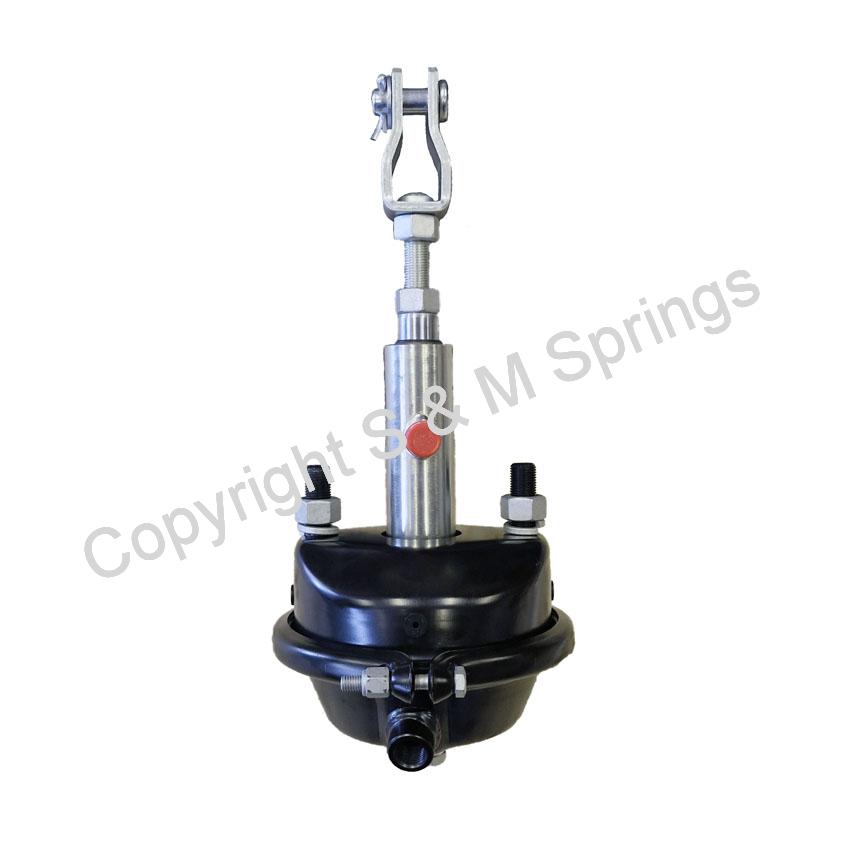

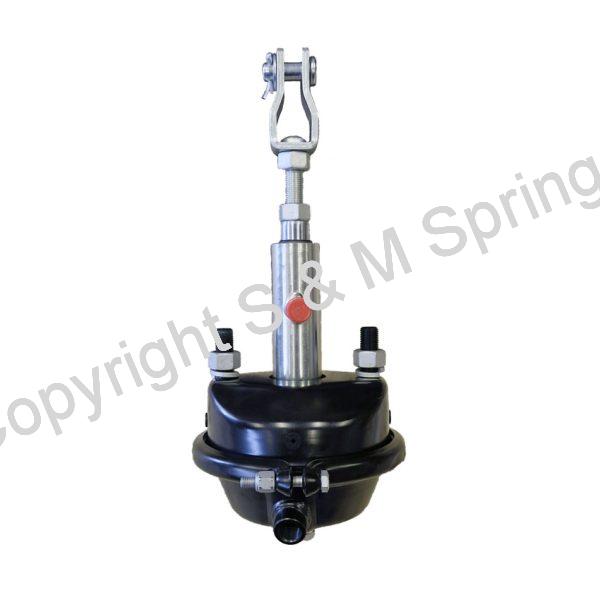

Air/Hydraulic Brake Actuator/Chamber T20/25
Description
Air/Hydraulic Brake Actuator/Chamber T20/25 for AGRICULTURAL Trailers
Dimensions/Information
Hydraulic Ports = 3/8″ BSP male.
Pneumatic Ports = M16 x 1.5 pitch thread.
Fixing Stud Dia. = M16 x 1.5 pitch @ 120mm centres
Piston = 25mm
Air Chamber diameter = 176mm
If you need a timed delivery service for this ref: Air/Hydraulic Brake Actuator/Chamber T20/25, we can help.
A Selection of other Agricultural Axle & Suspension components available:
Agricultural Drawbar Trailer Springs, available in 3 different options:
- 11 Leaf, 13 Leaf and 13 Leaf Heavy Duty option (all 120mm wide)
- Multi-Leaf in style, these Springs are in stock, along with U-Bolts and Spring Eye Pin
Dimensions for 11 Leaf Spring:
- Width = 120mm
- Centre of Eye to Centre of C/Bolt = 870mm
- Centre of Eye to end of Spring = 970mm
- Pack Depth = 154mm
- Eye I/D = 45mm
- Diameter of C/Bolt Head = M24 x 10mm deep
Dimension for 13 Leaf Spring:
- as 11 Leaf dimensions, except for. . .Pack Depth = 190mm
Dimension for 13 Leaf H/D Spring:
- as 11 Leaf dimensions, except for. . .Pack Depth = 205mm
Also in stock, are 3 & 4 Leaf Parabolic Slipper Ended Agricultural Springs, with one Hook only.
These are suitable for many agricultural trailer applications.
- Dimensions: Length (in a Straight Line) = 1070mm, or around the Camber = 560mm x 560mm
- Depth = 73mm (3 Leaf), 97mm (4 Leaf)
- Width = 75mm
- Centre Bolt Head = 25mm in diameter x 16mm in depth
Other configurations of leaf spring are available – 5, 6, 7 & 8 Leaf
We also have available the following items for Various types of axle:
- Front & Rear Spring Hanger Brackets
- Spring Saddles/Seats
- Equaliser Brackets
- Equaliser Bush Kits
- Torque Rod Bush Kits
- Air/Hydraulic Brake Chambers/Actuators
- Brake Shoes & Fitting Kits
- Brake Drums
Please search our AGRICULTURAL and TRAILER sections for more great products
