1107270 1107269 SCHMITZ Landing-Legs

1107270 1107269 SCHMITZ Landing-Legs

also stocked:

  • 1133397, 1133410 Landing Legs
  • 1110436, 1063037 Brake Caliper
  • 1110435, 1063036 Brake Caliper
  • 1003457 Hub Assembly
  • 1093977, 1008054 Shock Absorber
  • 016512 Air Bag (newer), US06285 (older)
  • 1319444 Distribution Block
  • 1081378 2 Step Ladder, 904527 Ladder Frame
  • 1009330 & 1193014 Air Reservoirs/Air Tanks
  • 1286539 ABS Sensor Bracket
  • 1118419 Raise Lower Valve
  • 1101449 Brake Pad Set
  • 1138736 Side Guard Leg
  • 751646 Rear Vertical Buffer
Categories: ,


Landing-Legs for SCHMITZ applications, with o.e. refs of: 1107270 and 1107269.

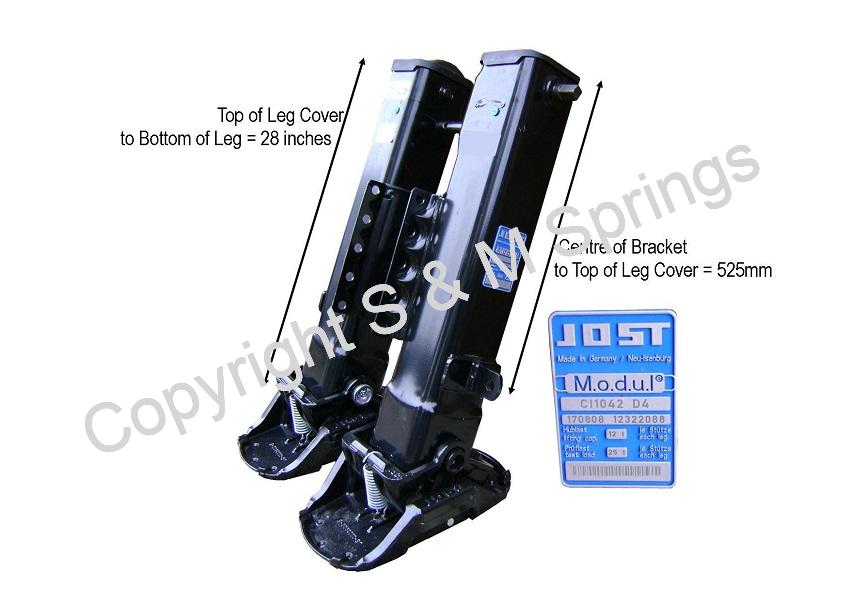

Dimensions: Top of Leg Cover to Bottom of Leg = 28 inches. Top of Leg Cover to Centre of Bracket = 525mm.

Both Legs have one main fixing plate each side, with 10 Holes per plate for fixing, roughly half-way down each leg.

Each Gearbox and Non-Gearbox Leg come complete with Compensator Feet as shown in picture.

Items are in stock, are made by JOST and are cross ref’d also via:  CI1042 D4.

Please check your o.e. refs and JOST plate, along with actual dimensions before ordering.

Hub Assembly, complete with 12 Studs and a Tin Cap, o.e. ref of: 1003457 and Flange Assembly, o.e. ref: 1004054, all in stock.

Wheel Stud, ref: 017872 and Wheel Nut ref: 015685, both also in stock.

Brake Pad Set, o.e. ref of: 1101449, always stocked, along with Brake Disc, ref: 17870.

We stock Wing Section ref: 1009977, too.

ABS Sensor-Bracket, with an o.e. ref of: 1286539, is always in stock.

Newer style Air Bag is stocked, with o.e. refs of: 016512, US86318F, US06318F and 1274268, made by Firestone.

Older style Air Bag is also in stock, ref: US06285.

We stock the popular Shock Absorber, with o.e. refs of: 1093977 and 1008054. Other refs are also available, so please enquire.

Air Reservoir-Tank to suit o.e. ref: 1009330, always in stock.

If you need a timed delivery service for this ref: 1107270 1107269 SCHMITZ Landing-Legs, we can help.

Just give us a call. We are here to help!  For any more information on this, and any other related products..
