2474864 2031369 SCANIA Spring – Mid Axle 3 Leaf
OE refs = 2474864, 2031369
Description
Parabolic 3 Leaf Mid Axle Spring, for SCANIA applications, with OE refs of: 2474864 and 2031369.
Item is in stock, along with the older version, OE ref of: 1324469.

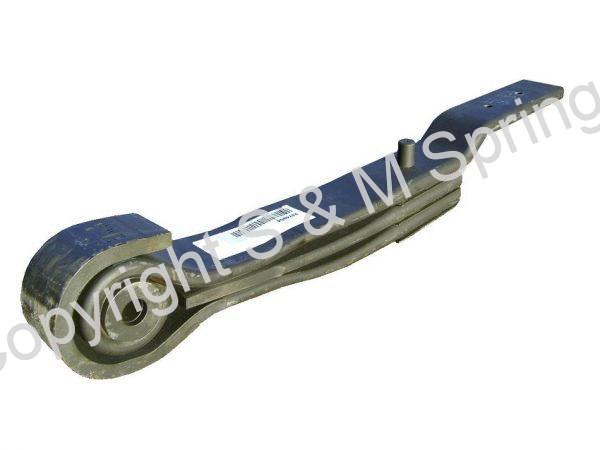

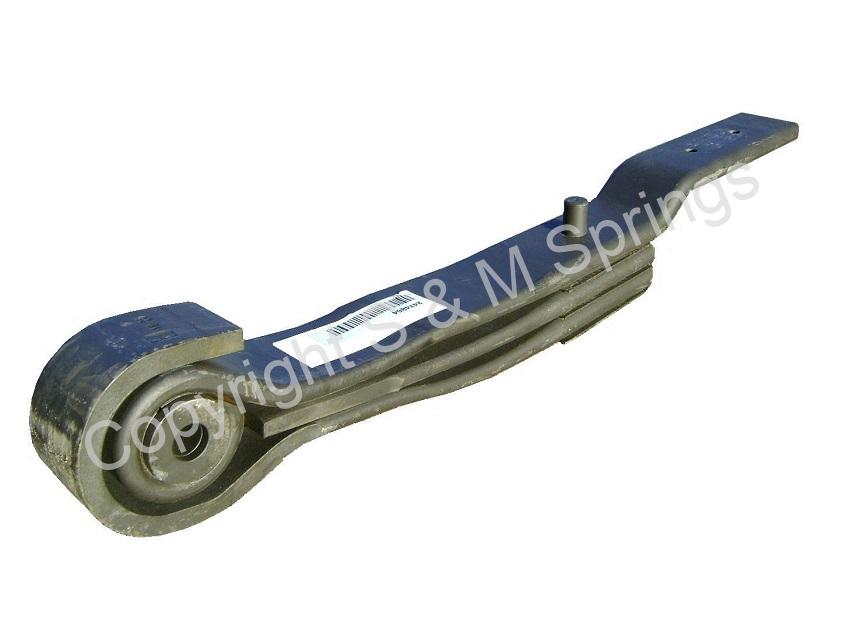

The spring is an eye/slipper configuration , with a metalastic bush in the eye.

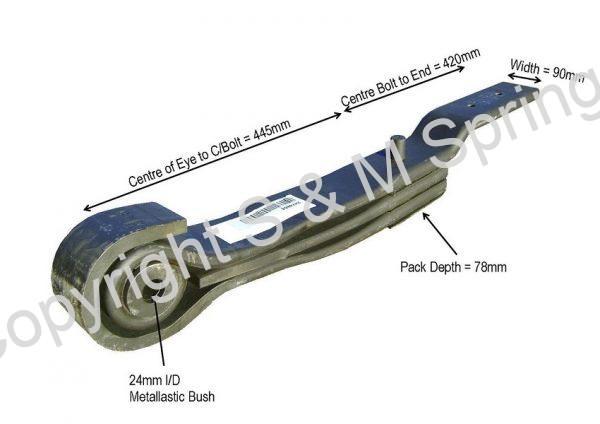

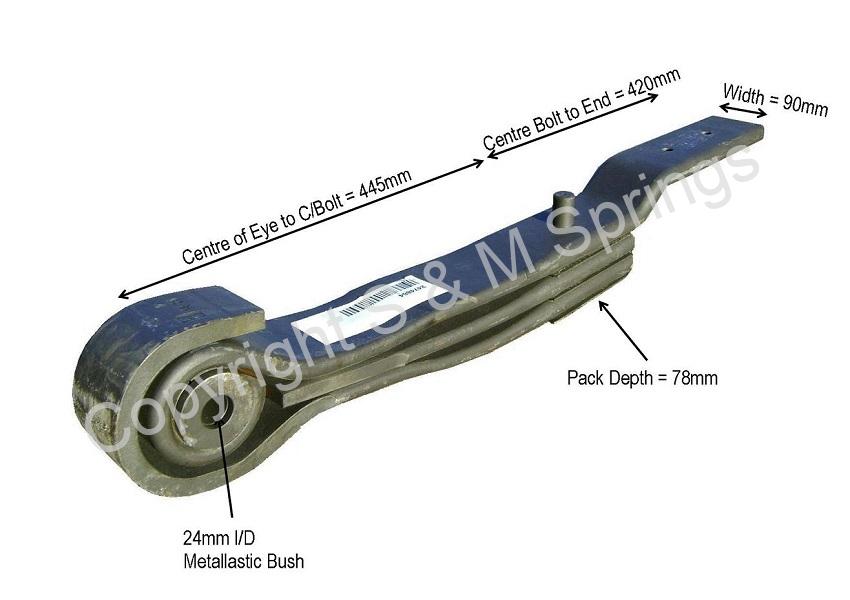

Dimensions: Centre of eye to c/bolt = 445mm. Centre bolt to end of spring = 420mm.
Width = 90mm. Pack depth = 78mm. I/D of bush = M24. 2 Holes at end of spring, with centres of 100mm.
A selection of other SCANIA parts in stock or available are:
- Midlift Spring (metalastic bush) with OE Refs: 2474864, 2031369
- Midlift Spring (screw bush) with OE Ref 1324469
- Midlift 2 Leaf Spring with OE Ref 8170540
- Midlift Single Leaf Spring with OE Ref 8170569
- Front 2 Leaf Spring with OE Ref 353174 and 1528206
- Front 3 Leaf Springs with OE Refs 1300566 or 2137285
- LH & RH Drive Axle Springs with OE Refs: 1769877 & 1769878 or 1421060 & 1421061
- Rear 4 Leaf Spring (slipper ended) 1377712
- Front Axle Shock Absorber with OE Refs: 1868263 & 1867874
- Mid Axle Shock Absorber with OE Ref 1867014
- Rear/Drive Axle Shock Absorber with OE Ref 1866129
- Drive Axle Airbags in stock – OE Refs: 1903608 & 1774804
- Drive Axle Airbags in stock – OE Refs: 1543691 & 1379392
- Mid Axle Suspension bags – OE Refs: 2517987 & 1865759
- Mid Axle Lift bags – OE Refs: 1863244 & 1319761)
- Front Cab Bags – OE Refs include: 2493165, 1926779, 1908098 & 1908097
- Headlamps – OE Refs: 2416145, 2241847, 200058 for the RH and 2416144, 2241846, 2000050 for the LH
- Rear Lamps (LED Type) – OE Refs: 2241858, 2380953, 1905042 for the RH and 2241860, 2380955, 1905044 for LH
- Rear Lamps (BULB Type) – OE Refs: 2021575, 1906549, 1756751 for RH and 2129985, 2021579, 1906552, 1756754 for LH
- Brake Pads (Front, Middle & Rear Axles) with OE Refs including: 1890861, 1856108, 1734529, 1527633 & 1390428 or 2325212
- Brake Discs (Front, Middle & Rear Axles) with OE Refs: 1889543, 1852817, 1402272 & 1386686
- Rear View Mirrors along with Mirror Glass and Mirror Covers
- Radiators with OE Refs including: 1764886 & 1442751, 1784616 & 1769997, 1798689 & 1784615 and 1781365
- Air Con Compressors with OE Refs including 1888033 & 1853081 and 2472901
- Air Con Condensers with OE Refs including: 1921284 & 1854555 and 1790840, 1782207 & 1752264
- Header Tanks with OE Refs including: 2401668, 1894478, 1855164 & 1765735 and 2401669, 1949013, 1800825 & 1755965
If you need a timed delivery service for these refs: 2474864 2031369 SCANIA Spring – Mid Axle 3 Leaf, we can help
Just give us a call. We are here to help! For any more information on this, and any other related products…
