Agricultural Trailer Spring 3 Leaf (Hook One End) – SM3LSpring
also in stock:
- 4 Leaf version (depth 97mm x 1070mm long) SM4LSpring
- Drawbar Trailer Spring 11 Leaf
- Drawbar Trailer Spring 13 Leaf
- Drawbar Trailer Spring 13 Leaf H/Duty

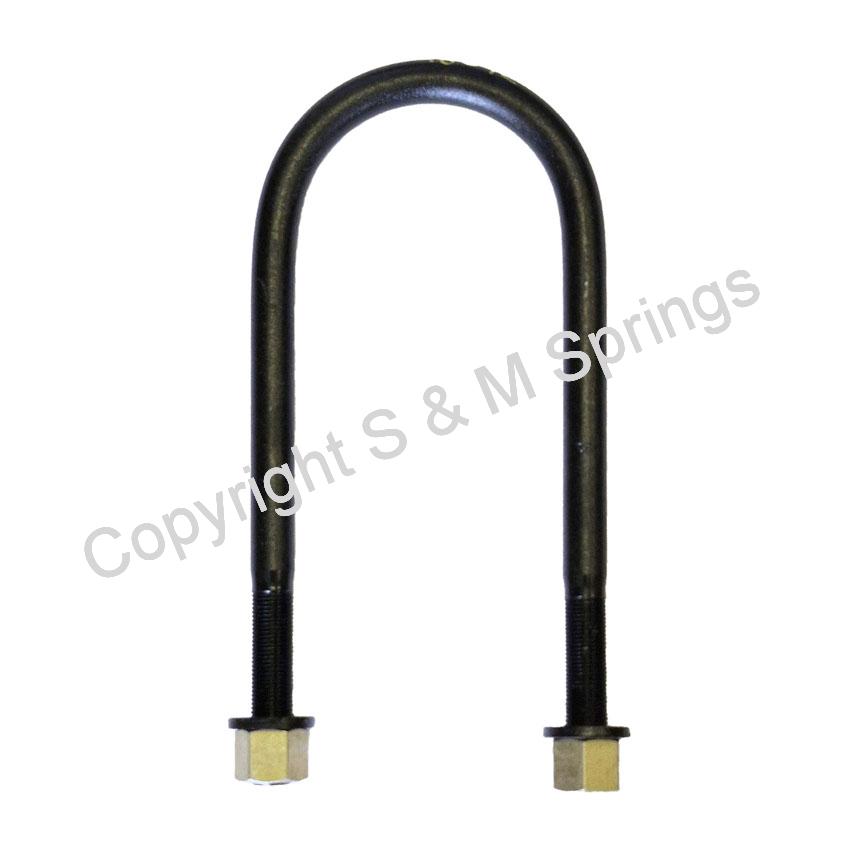

- U-Bolts & Nuts
- Spring Eye Pin & Nut (for Drawbar Springs)
Description

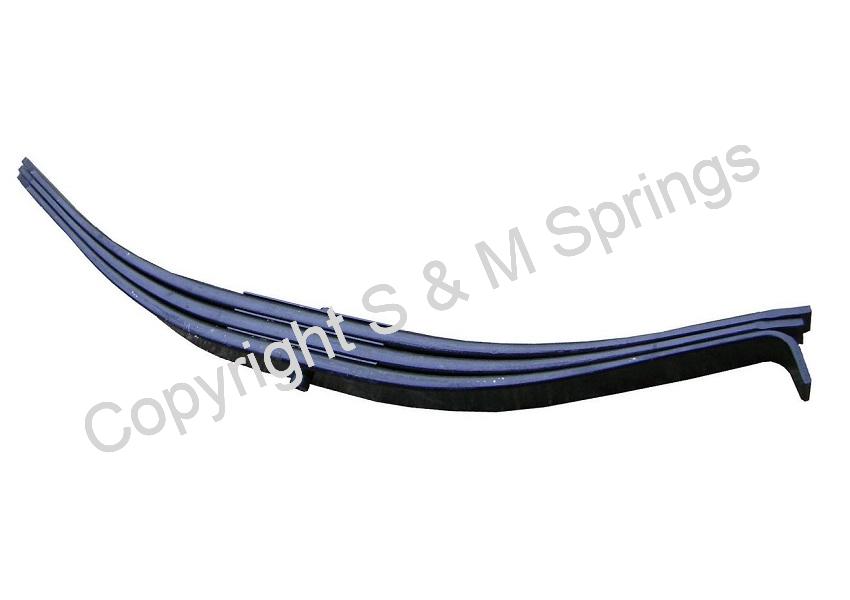

An Agricultural Trailer Spring 3 Leaf, Slipper Ended both ends, with a Hook at one end only.
These popular leaf springs are always in stock and available for same day delivery or next day courier service.
Established in 1995, S & M Springs has over 30 years experience in the supply and manufacture of Parabolic and Multi-Leaf Springs for the Commercial, Agricultural, LCV and 4 x 4 markets.
Parabolic in style, this Spring is in stock, & suitable for many agricultural trailer applications.
The single Hook is on the 3rd Leaf only.

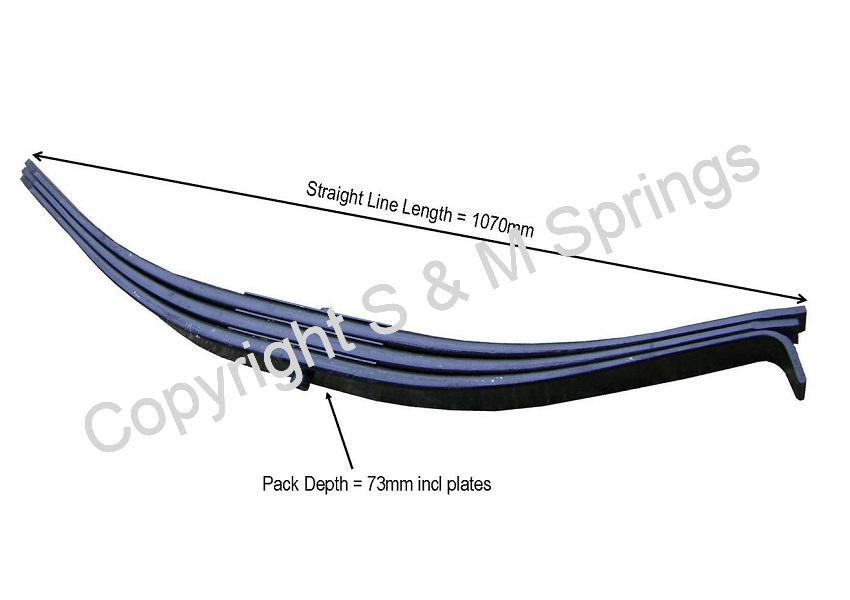

- Dimensions: Length (measured in a Straight Line) = 1070mm, or around the Camber = 560mm x 560mm.
- Pack Depth = 73mm including the plates. Width = 75mm. Centre Bolt Head = 25mm in diameter x 16mm in depth.

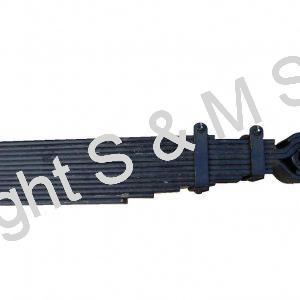

We also stock Agricultural Drawbar Trailer Springs, available in 3 different options:
- 11 Leaf, 13 Leaf and 13 Leaf Heavy Duty option (all 120mm wide)
- Multi-Leaf in style, these Springs are in stock, along with U-Bolts and Spring Eye Pin.
Dimensions for 11 Leaf Spring:
- Width = 120mm
- Centre of Eye to Centre of C/Bolt = 870mm
- Centre of Eye to end of Spring = 970mm
- Pack Depth = 154mm
- Eye I/D = 45mm
- Diameter of C/Bolt Head = M24 x 10mm deep
Dimension for 13 Leaf:
- as 11 Leaf dimensions, except for. . .
- Pack Depth = 190mm
Dimension for 13 Leaf H/D:
- as 11 Leaf dimensions, except for. . .
- Pack Depth = 205mm
If you need a timed delivery service for this ref: Agricultural Trailer Spring 3 Leaf, we can help.
Just give us a call. We are here to help! For any more information on this, and any other related products..
