Agricultural Trailer Spring 4 Leaf (Hook One End) 75mm Wide – SM4LSpring
Description
An Agricultural Trailer Spring 4 Leaf, Slipper Ended both ends, with a Hook at one end only.
These popular leaf springs are always in stock and available for same day delivery or next day courier service.
Parabolic in style, this Spring is in stock, & suitable for many agricultural trailer applications including Bailey trailers.
The single Hook is on the 4th Leaf only.

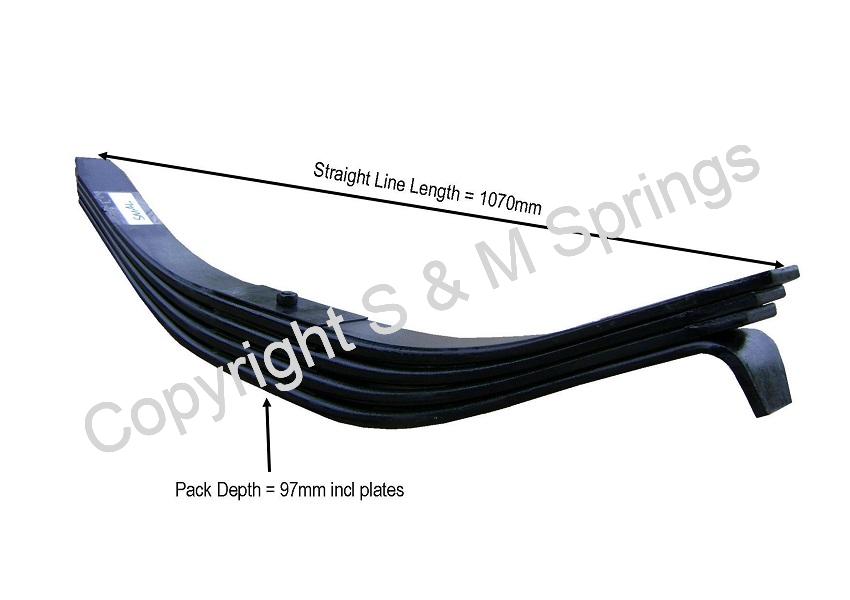

Dimensions:
Length (measured in a Straight Line) = 1070mm, or around the Camber = 560mm x 560mm.
Pack Depth = 97mm including the plates.
Width = 75mm.
Centre Bolt Head = 25mm in diameter x 16mm in depth.

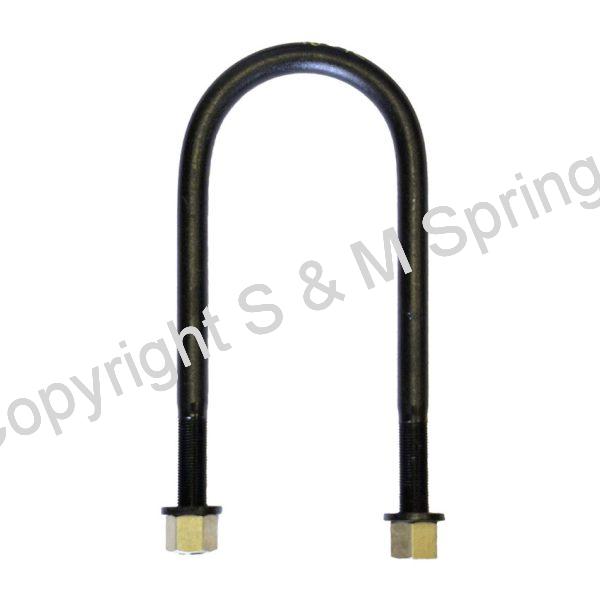

The U Bolts for this 4 Leaf Spring are also available
Dimensions:
Material: M22
Width (Inside): 130mm approx.
Length (Inside): 335mm approx.
Thread Length: 90mm approx.
If you need a timed delivery service for this ref: Agricultural Trailer Spring 4 Leaf (Hook One End) – SM4LSpring, we can help.
We also stock Agricultural Drawbar Trailer Springs, available in 3 different options:
- 11 Leaf, 13 Leaf and 13 Leaf Heavy Duty option (all 120mm wide)
- Multi-Leaf in style, these Springs are in stock, along with U-Bolts and Spring Eye Pin
Dimensions for 11 Leaf Spring:
- Width = 120mm
- Centre of Eye to Centre of C/Bolt = 870mm
- Centre of Eye to end of Spring = 970mm
- Pack Depth = 154mm
- Eye I/D = 45mm
- Diameter of C/Bolt Head = M24 x 10mm deep
Dimension for 13 Leaf:
- as 11 Leaf dimensions, except for. . .
- Pack Depth = 190mm
Dimension for 13 Leaf H/D:
- as 11 Leaf dimensions, except for. . .
- Pack Depth = 205mm
Also in stock, are 3 & 4 Leaf Parabolic Slipper Ended Agricultural Springs, with one Hook only.
These are suitable for many agricultural trailer applications.
-
- Dimensions: Length (in a Straight Line) = 1070mm, or around the Camber = 560mm x 560mm
- Depth = 73mm (3 Leaf), 97mm (4 Leaf)
- Width = 75mm
- Centre Bolt Head = 25mm in diameter x 16mm in depth
