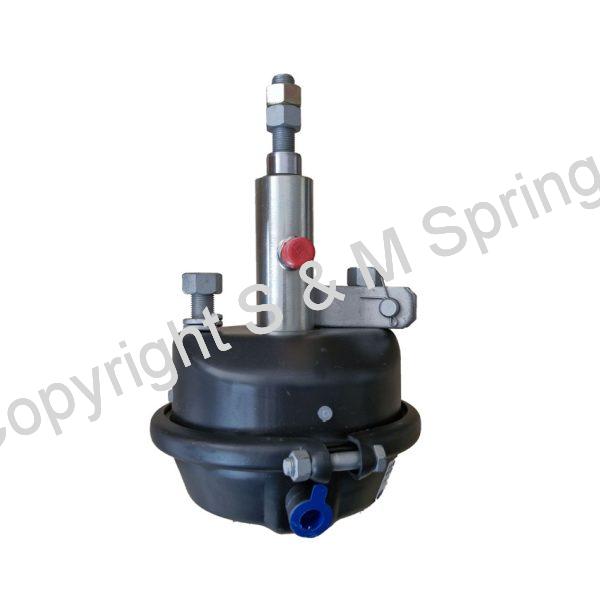

Air/Hydraulic Brake Actuator/Chamber T24/25

Description

Description

Air/Hydraulic Brake Actuator/Chamber T24/25 for AGRICULTURAL Trailers

Dimensions/Information

Hydraulic Ports = 3/8″ BSP male.
Pneumatic Ports = M16 x 1.5 pitch thread.
Fixing Stud Dia. = M16 x 1.5 pitch @ 120mm centres
Piston = 25mm
Air Chamber diameter = 185mm

If you need a timed delivery service for this ref: Air/Hydraulic Brake Actuator/Chamber T24/25, we can help.

A Selection of other Agricultural Axle & Suspension components available:

Agricultural Drawbar Trailer Springs, available in 3 different options:

11 Leaf, 13 Leaf and 13 Leaf Heavy Duty option (all 120mm wide)

Multi-Leaf in style, these Springs are in stock, along with U-Bolts and Spring Eye Pin

Dimensions for 11 Leaf Spring:

Width = 120mm

Centre of Eye to Centre of C/Bolt = 870mm

Centre of Eye to end of Spring = 970mm

Pack Depth = 154mm

Eye I/D = 45mm

Diameter of C/Bolt Head = M24 x 10mm deep

Dimension for 13 Leaf Spring:

as 11 Leaf dimensions, except for. . .Pack Depth = 190mm

Dimension for 13 Leaf H/D Spring:

as 11 Leaf dimensions, except for. . .Pack Depth = 205mm

Also in stock, are 3 & 4 Leaf Parabolic Slipper Ended Agricultural Springs, with one Hook only.

These are suitable for many agricultural trailer applications.

Dimensions: Length (in a Straight Line) = 1070mm, or around the Camber = 560mm x 560mm

Depth = 73mm (3 Leaf), 97mm (4 Leaf)

Width = 75mm

Centre Bolt Head = 25mm in diameter x 16mm in depth

Other configurations of leaf spring are available – 5, 6, 7 & 8 Leaf

We also have available the following items for Various types of axle:

Front & Rear Spring Hanger Brackets

Spring Saddles/Seats

Equaliser Brackets

Equaliser Bush Kits

Torque Rod Bush Kits

Air/Hydraulic Brake Chambers/Actuators

Brake Shoes & Fitting Kits

Brake Drums

Please search our AGRICULTURAL and TRAILER sections for more great products
